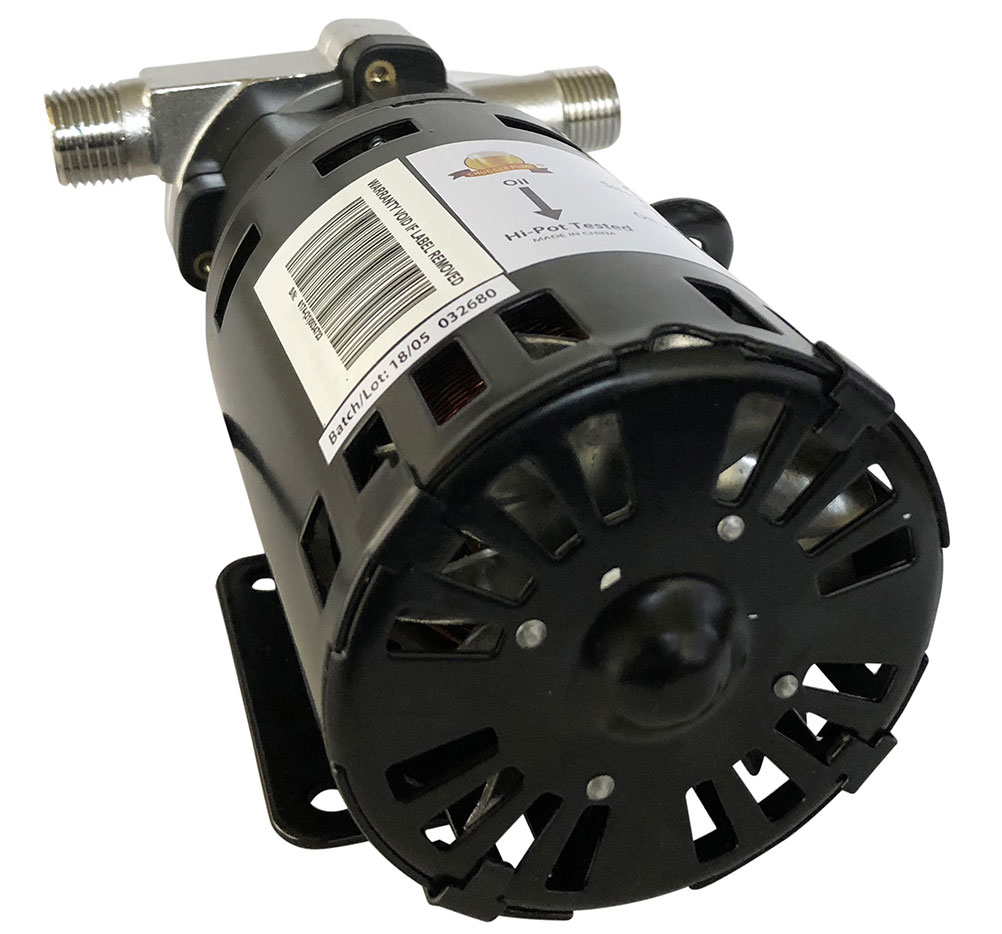

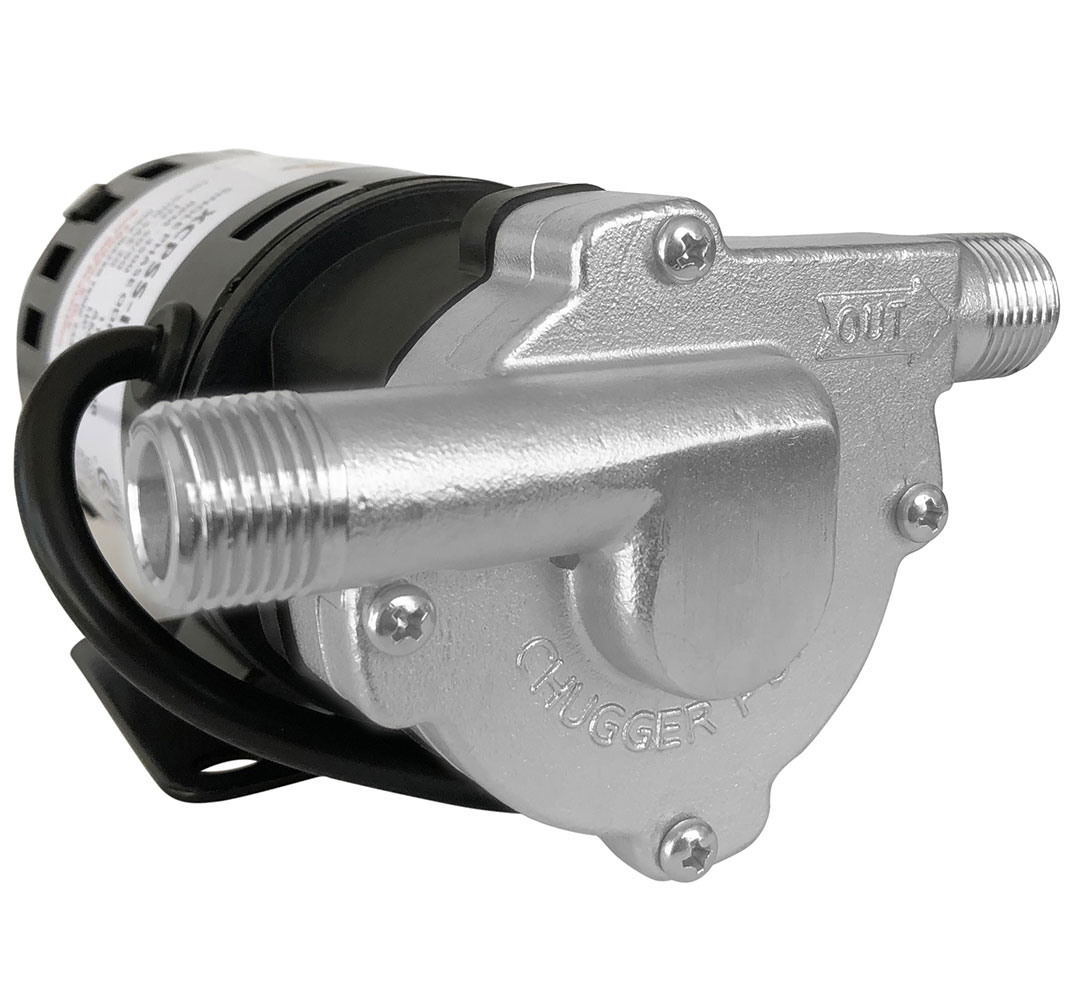

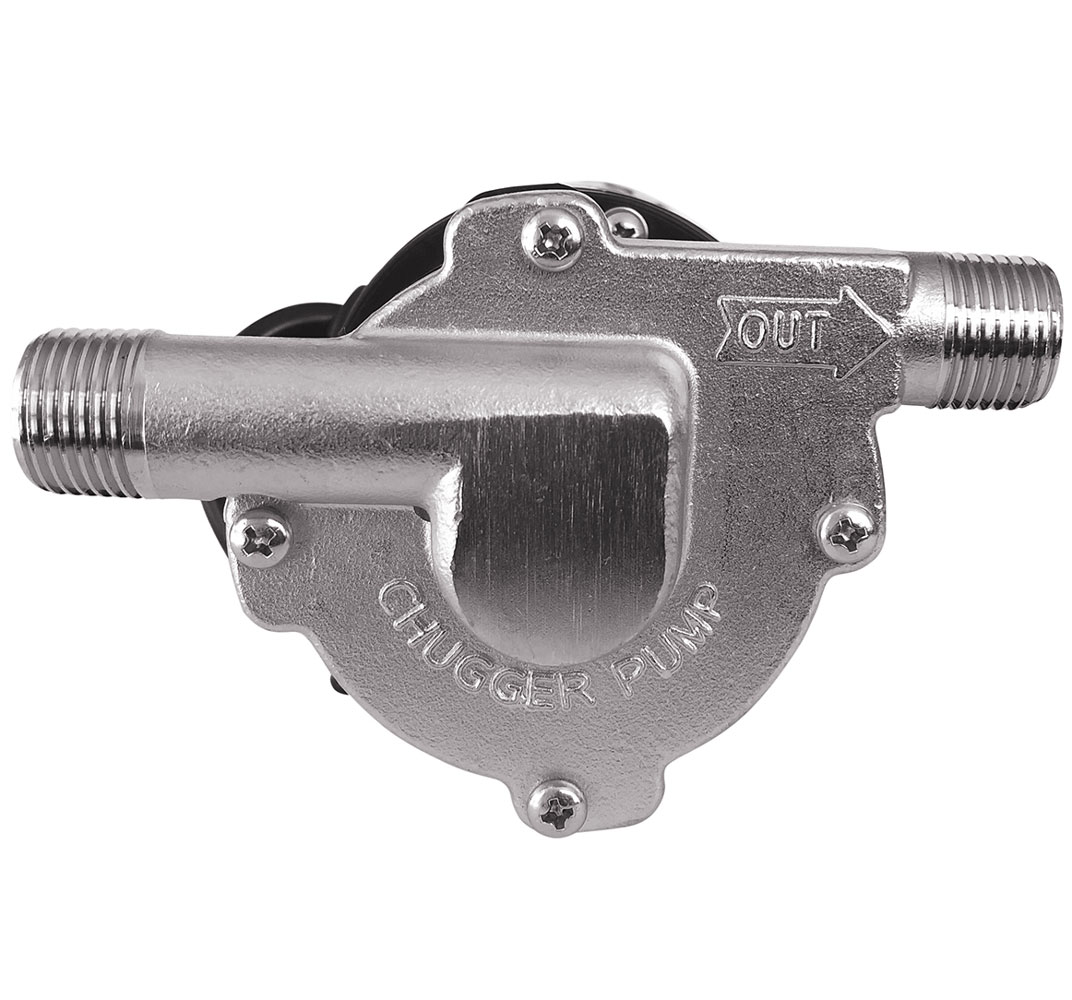

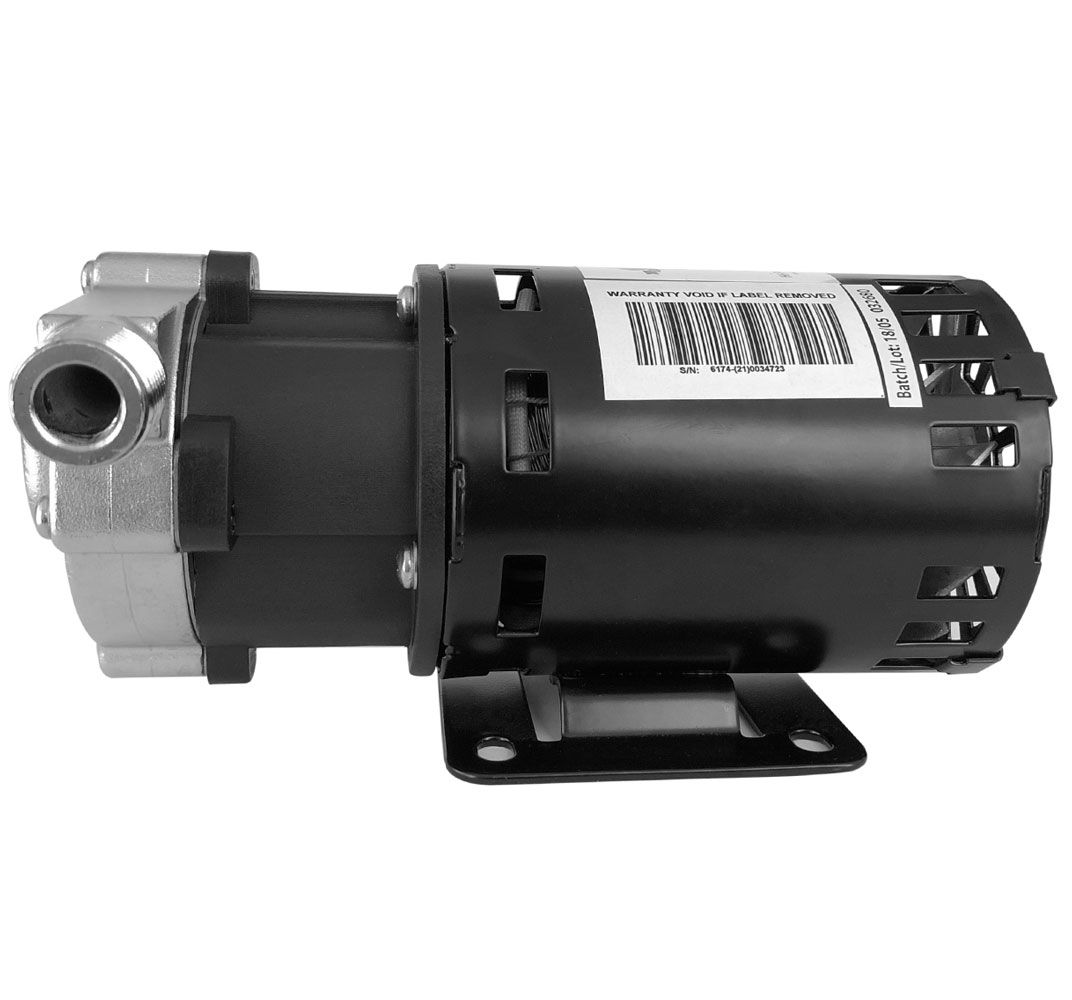

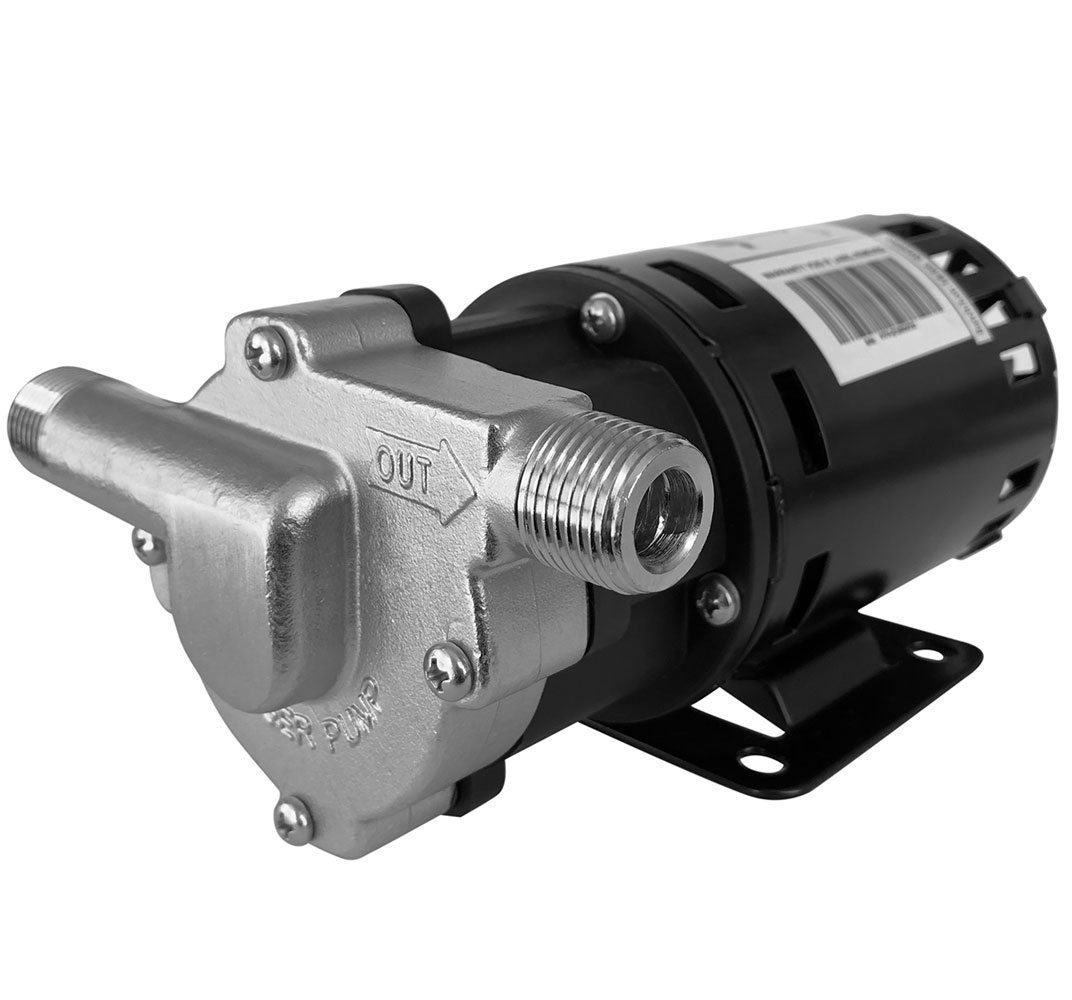

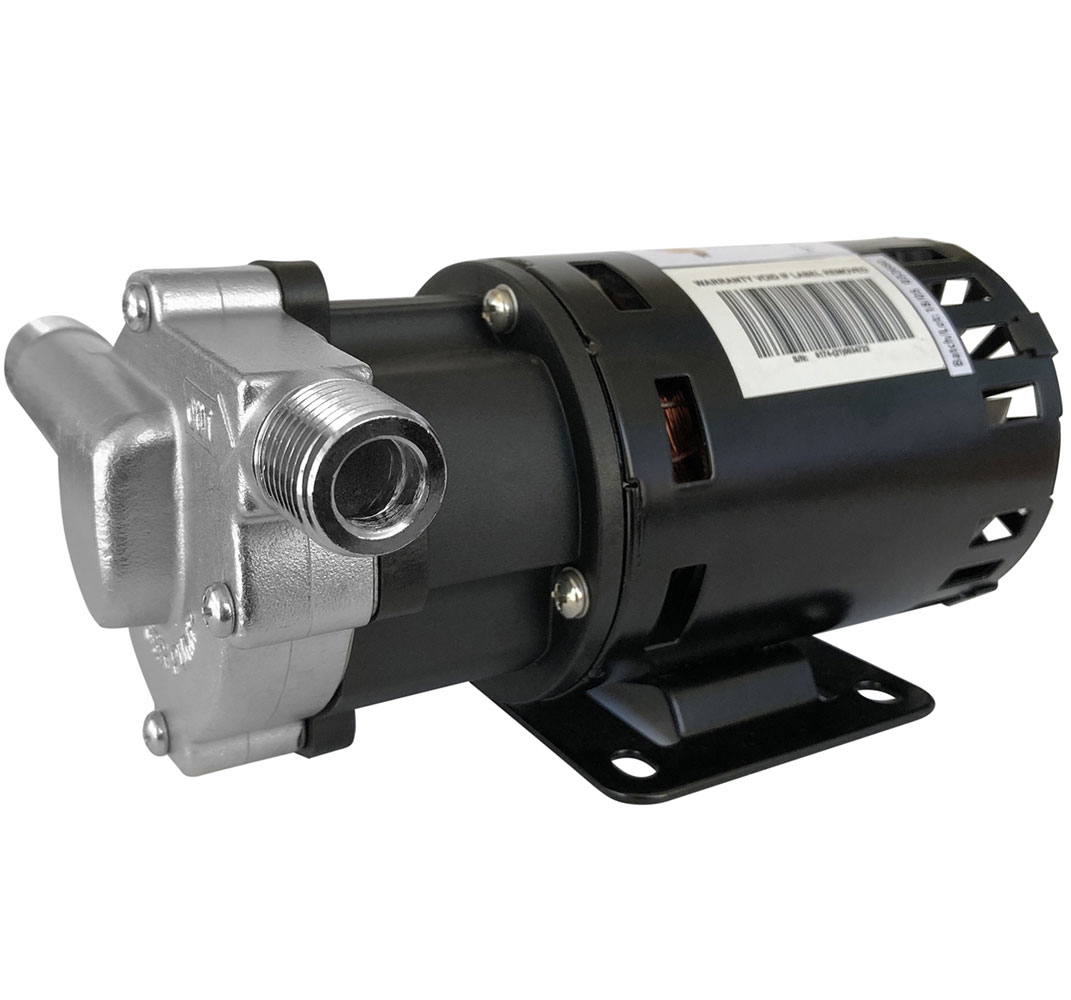

Chugger X-DRY XCPSS-IN (inline, rustfri)
1 recension
3.190 SEK
Beskrivelse
Artnr: 830400
Chugger X-DRY er en ny pumpemodel med kuglelejer, der betyder, at pumpen ikke risikerer at blive beskadiget, hvis den tilfældigvis løber tør (uden væske).
På andre pumpemodeller er det let for pumpehjulet at begynde at smelte og derefter sidde fast på drivakslen, hvis det køres tørt.
Chuggerpumpen er både varmebestandig (modstår 120 °C) og af fødevarekvalitet, så den er ideel til pumpning af urt. Takket være den magnetiske kobling er den helt lækagefri. Pumpen er ikke selvsugende og skal derfor placeres lavt i systemet, så den fyldes med væske.
Kapacitet: op til 26,5 liter pr. Minut.
Maks. Pumpehøjde: 5,6 meter
Elmotor: 230 volt.
Forbindelser: i 1/2" MPT, ud 1/2" MPT (am. Rørgevind).
Materiale: pumpehus i rustfrit stål, skive i teflon, o-ring i silikone, impeller i Ryton / teflon.
Hvis du vil begrænse strømningen med for eksempel en kugleventil, skal dette gøres ved udløbet, ikke ved indløbet.
Leveres uden stik. Installeret af en kvalificeret elektriker.
General Specification:
Model: XCPSS-IN
Chugger X-Dry models with FDA Approved Carbon Bearing Materials. Many people do not realize that most pumps should not be run dry, (running the pump without liquid) but it happens.
When a pump has been run dry, the most of the time the impeller will start to melt and warp. When this occurs the shaft can seize up with the impeller and will stop spinning.
The new carbon bearing will prevent your pump from seizing when run dry.
Please note, the Chugger X-Dry Home Brew Pumps are Not Self Priming and the pump head must be flooded with liquid prior to being turned on.
Inlet 1/2" MPT Outlet 1/2" MPT
Materials: 316 stainless steel (front and rear housing), teflon (thrust washer), clear silicone (O-ring), polysulfone (impeller)
Max Flow 7 GPM (26.5 LPM)
Max Head 18.6 FT (5.6 M)
Power 1/20 HP (30 W)
Electrical 230V 50/60HZ
Submersible: Non-Submersible
Can handle liquids of 250 ºF (120 ºC)
Materials are FDA Food Compliant
Components are UL Recognized
Installation:
The CHUGGER PUMP® is shipped ready for installation. Directional arrows on the pump head show fluid direction through the pump. The four screws on the pump head may be removed and the pump head can be rotated as required to fit your piping system.
Follow all local electrical safety codes and always disconnect power before performing work on or near the pump motor.
På andre pumpemodeller er det let for pumpehjulet at begynde at smelte og derefter sidde fast på drivakslen, hvis det køres tørt.
Chuggerpumpen er både varmebestandig (modstår 120 °C) og af fødevarekvalitet, så den er ideel til pumpning af urt. Takket være den magnetiske kobling er den helt lækagefri. Pumpen er ikke selvsugende og skal derfor placeres lavt i systemet, så den fyldes med væske.
Kapacitet: op til 26,5 liter pr. Minut.
Maks. Pumpehøjde: 5,6 meter
Elmotor: 230 volt.
Forbindelser: i 1/2" MPT, ud 1/2" MPT (am. Rørgevind).
Materiale: pumpehus i rustfrit stål, skive i teflon, o-ring i silikone, impeller i Ryton / teflon.
Hvis du vil begrænse strømningen med for eksempel en kugleventil, skal dette gøres ved udløbet, ikke ved indløbet.
Leveres uden stik. Installeret af en kvalificeret elektriker.
General Specification:
Model: XCPSS-IN
Chugger X-Dry models with FDA Approved Carbon Bearing Materials. Many people do not realize that most pumps should not be run dry, (running the pump without liquid) but it happens.
When a pump has been run dry, the most of the time the impeller will start to melt and warp. When this occurs the shaft can seize up with the impeller and will stop spinning.
The new carbon bearing will prevent your pump from seizing when run dry.
Please note, the Chugger X-Dry Home Brew Pumps are Not Self Priming and the pump head must be flooded with liquid prior to being turned on.
Inlet 1/2" MPT Outlet 1/2" MPT
Materials: 316 stainless steel (front and rear housing), teflon (thrust washer), clear silicone (O-ring), polysulfone (impeller)
Max Flow 7 GPM (26.5 LPM)
Max Head 18.6 FT (5.6 M)
Power 1/20 HP (30 W)
Electrical 230V 50/60HZ
Submersible: Non-Submersible
Can handle liquids of 250 ºF (120 ºC)
Materials are FDA Food Compliant
Components are UL Recognized
Installation:
The CHUGGER PUMP® is shipped ready for installation. Directional arrows on the pump head show fluid direction through the pump. The four screws on the pump head may be removed and the pump head can be rotated as required to fit your piping system.
Follow all local electrical safety codes and always disconnect power before performing work on or near the pump motor.
